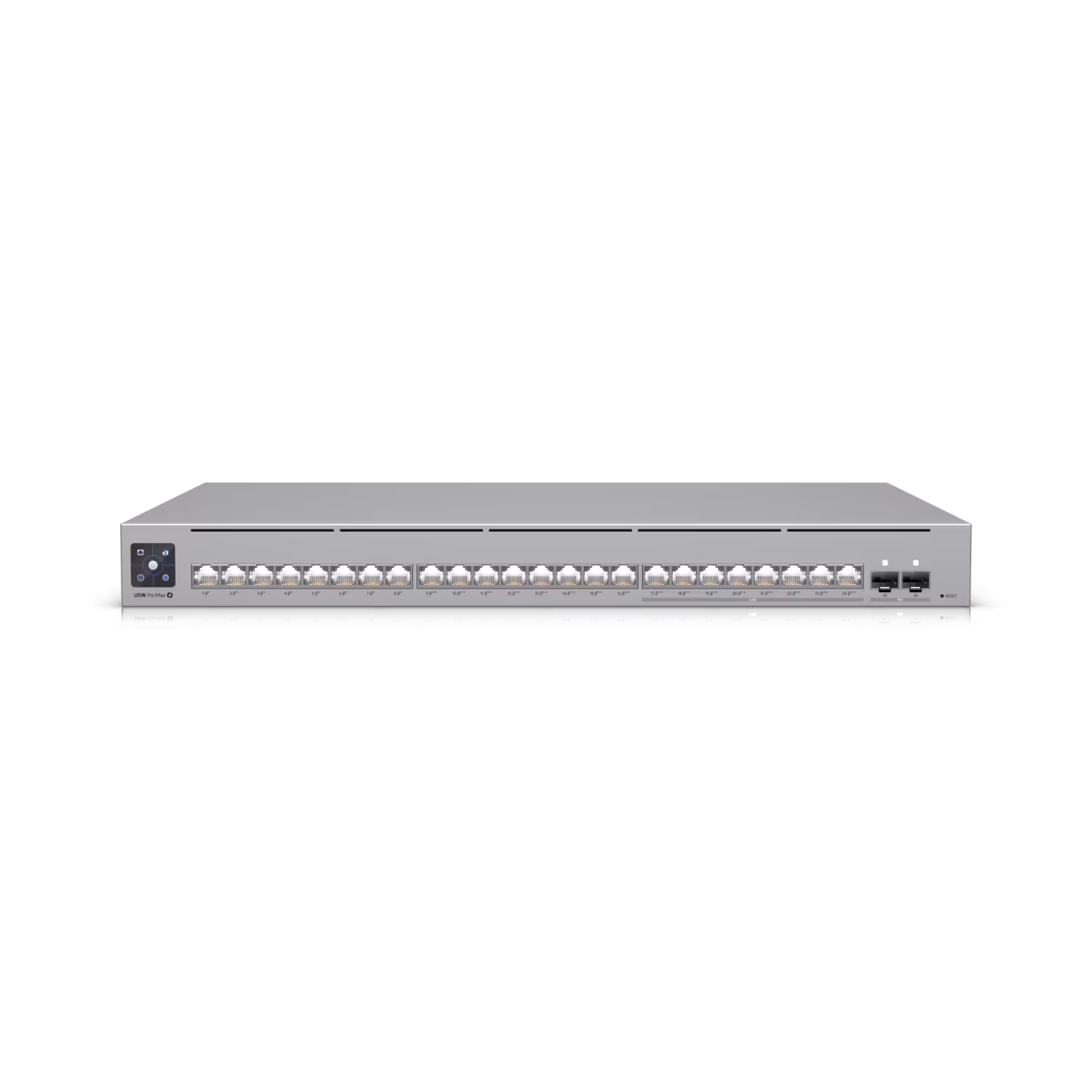

Ubiquiti USW-Pro-Max-24-PoE (400W) A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

(18 reviews)

KES 141,000

~~KES 150,000~~

Available

Shop top-quality laptops, desktops, monitors, networking devices, and accessories at Century Systems. Affordable prices, fast delivery, and expert support.

ADD TO CART

Share on

Description

Product Infomation

Overview

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

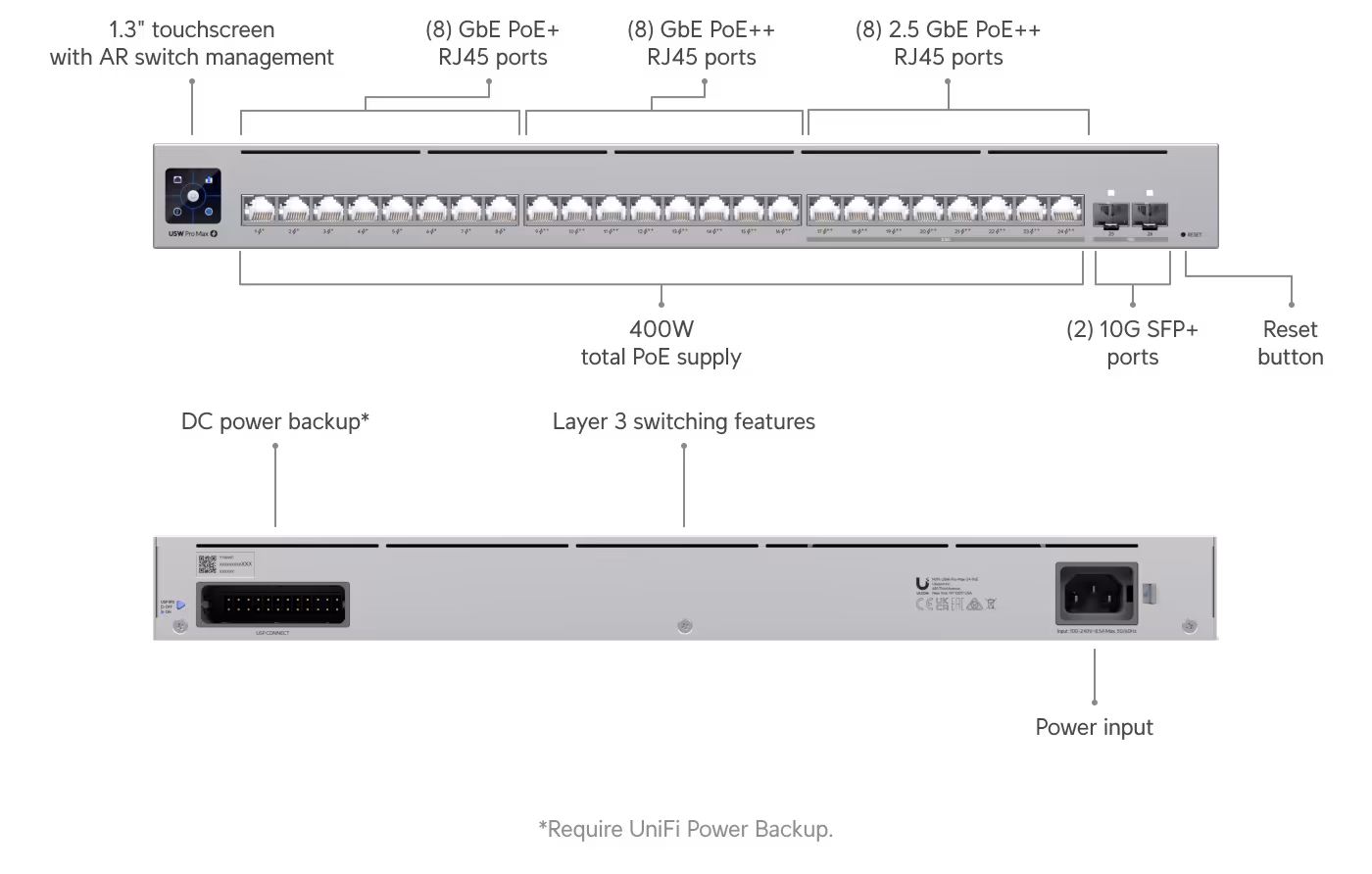

Port Layout

1 GbE RJ45

16 (8 PoE+; 8 PoE++)

2.5 GbE RJ45

8 (All PoE++)

10G SFP+

Max. PoE Output

Up to PoE++

Total PoE Availability

400W

Redundancy

DC Power Backup

Layer 3

Yes

Form Factor

Rack mount (1U)

Etherlighting™

Yes

Performance

Switching Capacity

112 Gbps

Total Non-Blocking Throughput

56 Gbps

Forwarding Rate

83 Mpps

Supported VLANs

1,000

MAC Address Table Size

16,000

L3 Table Size

ARP Entries

6,000

IPv4 Routes

512

Packet Buffer Size

1.5 MB

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

QoS (DSCP)

Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

PoE Ports

PoE+

PoE++

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

32W

PoE++

64W

Max. Power Consumption

50W (Excluding PoE Output) 450W (Including PoE Output)

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 550W

Supported Voltage Range

100—240V AC

Management

Ethernet AR

Heat Dissipation (Excluding PoE Output)

170.6 BTU/hr

Weight

Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)

Enclosure Material

SGCC steel

Supported Rack Depth

400~1200 mm (15.7-47.2")

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Etherlighting™

Ethernet

Yes

SFP+

Yes
