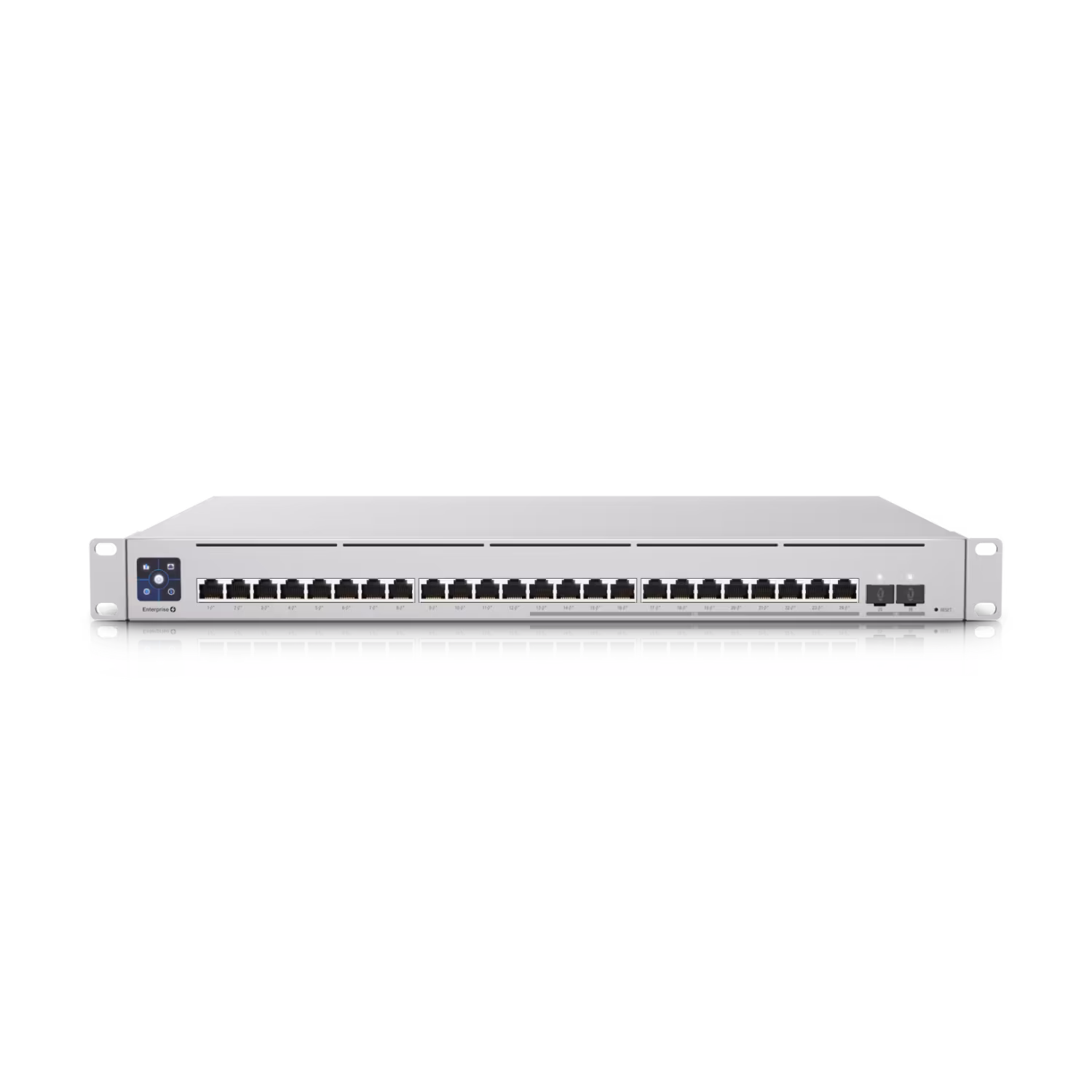

Ubiquiti UniFi Switch Enterprise 24 PoE USW-ENTERPRISE-24-POE Managed L3 GE (10/100/1000) PoE Silver

(18 reviews)

KES 163,560

~~KES 174,000~~

Available

Shop top-quality laptops, desktops, monitors, networking devices, and accessories at Century Systems. Affordable prices, fast delivery, and expert support.

ADD TO CART

Share on

Description

Product Infomation

Overview

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

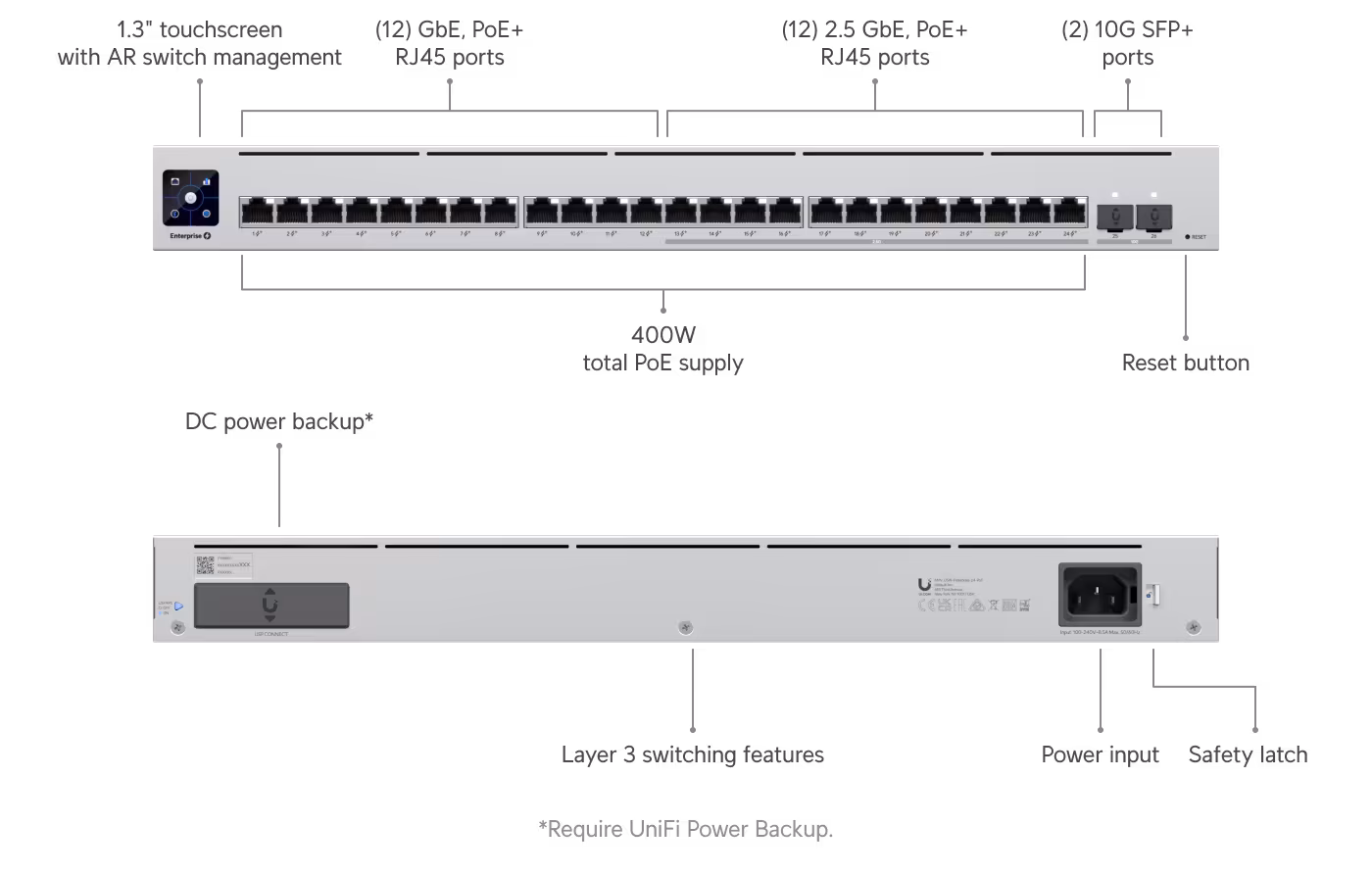

Port Layout

1 GbE RJ45

12 (All PoE+)

2.5 GbE RJ45

12 (All PoE+)

10G SFP+

Max. PoE Output

Up to PoE+

Total PoE Availability

400W

Redundancy

DC Power Backup

Layer 3

Yes

Form Factor

Rack mount (1U)

Performance

Switching Capacity

62 Gbps

Total Non-Blocking Throughput

62 Gbps

Forwarding Rate

92 Mpps

Supported VLANs

1,000

MAC Address Table Size

16,000

L3 Table Size

ARP Entries

4,000

IPv4 Routes

1,000

Packet Buffer Size

4 MB

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

QoS (DSCP)

Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

PoE Ports

PoE+

Max. PoE Wattage per Port by PSE

PoE+

32W

Max. Power Consumption

60W (Excluding PoE Output) 460W (Including PoE Output)

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 550W

Supported Voltage Range

100—240V AC

Management

Ethernet AR

Heat Dissipation (Excluding PoE Output)

204.72 BTU/hr

Weight

Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)

Enclosure Material

SGCC steel

Supported Rack Depth

400~1200 mm (15.7-47.2")

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC
