| Dimensions & Weight | |
|---|---|
| Depth: | 40.6 cm |
| Height: | 13.3 cm |
| Weight: | 20.4 kg |
| Width: | 43.8 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 5 - 95% |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots: | 4 (total) / 4 (free) x HWIC ¦ 2 (total) / 2 (free) x AIM ¦ 4 (total) / 4 (free) x NME-X ¦ 4 (total) / 4 (free) x PVDM - SIMM 80-PIN ¦ Memory ¦ CompactFlash |

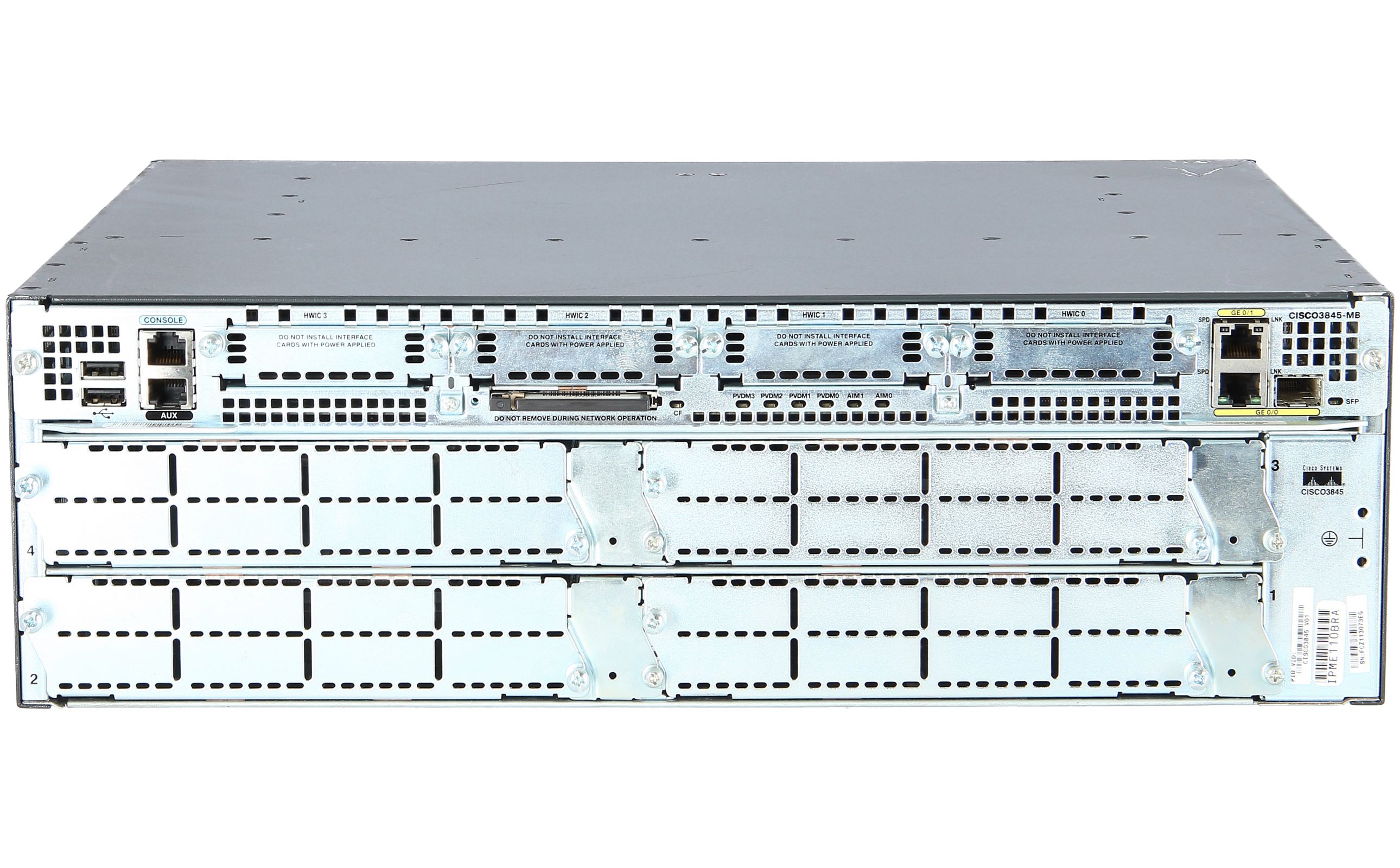

| Interfaces: | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ Management: 1 x console - RJ-45 ¦ Serial: 1 x auxiliary - RJ-45 ¦ 1 x SFP (mini-GBIC) |
| General | |
|---|---|
| Compliant Standards: | VCCI, CISPR 22 Class A, EN 60950, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, CS-03, FCC CFR47 Part 68, FCC CFR47 Part 15, EN 300 386 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type: | Router |
| Enclosure Type: | Desktop - modular - 3U |
| Features: | Firewall protection, MPLS support |
| Flash Memory: | 64 MB (installed) / 256 MB (max) |
| Network / Transport Protocol: | IPSec |
| RAM: | 256 MB (installed) / 1 GB (max) - DDR SDRAM |
| Remote Management Protocol: | SNMP 3 |
| Status Indicators: | Power, link/activity |
| Power | |
|---|---|
| Power Device: | Internal power supply |
| Software / System Requirements | |
|---|---|
| OS Provided: | Cisco IOS Advanced Security |
