Product Infomation

• Double-Conversion On-Line Technology: Provides pure sine wave power with zero transfer time to ensure uninterrupted operation of critical systems during power outages or fluctuations.
• Versatile Connectivity: Equipped with an IEC 320 C20 input, 6x IEC 320 C13 outlets, and 1x IEC 320 C19 outlet for flexible connection options to a variety of devices.
• Network Management Capability: Includes an intelligent card slot that supports optional Network Management Cards (AP9544, SRVSMB001, VGL9601I), enabling remote monitoring and management via network-based platforms like EcoStruxure IT or third-party systems.
• Seamless Power Transfer: Features both automatic and manual bypass modes, ensuring continuous power to the load even if an internal fault is detected within the UPS.
• Long Battery Life: The built-in lead-acid battery comes with a 2-year warranty, ensuring reliable performance and easy maintenance. It’s compatible with the APC Replacement Battery Cartridge APCRBCV205.
• User-Friendly Interface: The UPS includes an intuitive LCD display that provides real-time information on power status, load capacity, and battery condition, allowing for easy monitoring and management.
• Compact Design: The tower form factor allows for easy integration into various environments, from server rooms to small office spaces.

 Specifications:

• Capacity: 3000VA / 2400W
• Topology: Double-Conversion On-Line
• Input Voltage: 230V
• Input Connection: IEC 320 C20
• Output Voltage: 230V
• Output Connections:
  • 6x IEC 320 C13
  • 1x IEC 320 C19
• Battery Type: Sealed Lead-Acid, Maintenance-Free
• Battery Life: 2 Years (warranty), compatible with APCRBCV205
• Runtime: Configurable depending on the load and additional battery packs
• Transfer Time: 0 ms (zero transfer time)
• Management: Intelligent Card Slot for optional Network Management Cards (AP9544, SRVSMB001, VGL9601I)
• Bypass: Automatic and Manual Bypass
• LCD Display: Yes, for status monitoring and configuration
• Operating Environment:
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 0-95% RH, non-condensing
• Dimensions (HxWxD): 432 x 190 x 336 mm
• Weight: Approximately 31 kg
• Compliance: CE, IEC 62040-1-1, IEC 62040-2
• Warranty: 2 Years for UPS and Battery

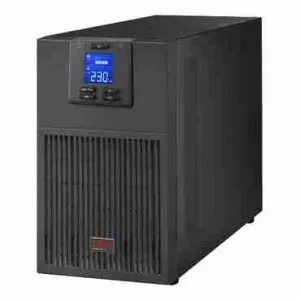

This APC Easy UPS On-Line SRV 3000VA is a robust solution designed to keep your critical systems running smoothly, even in the face of power disruptions, ensuring business continuity and protecting your valuable data and equipment.
